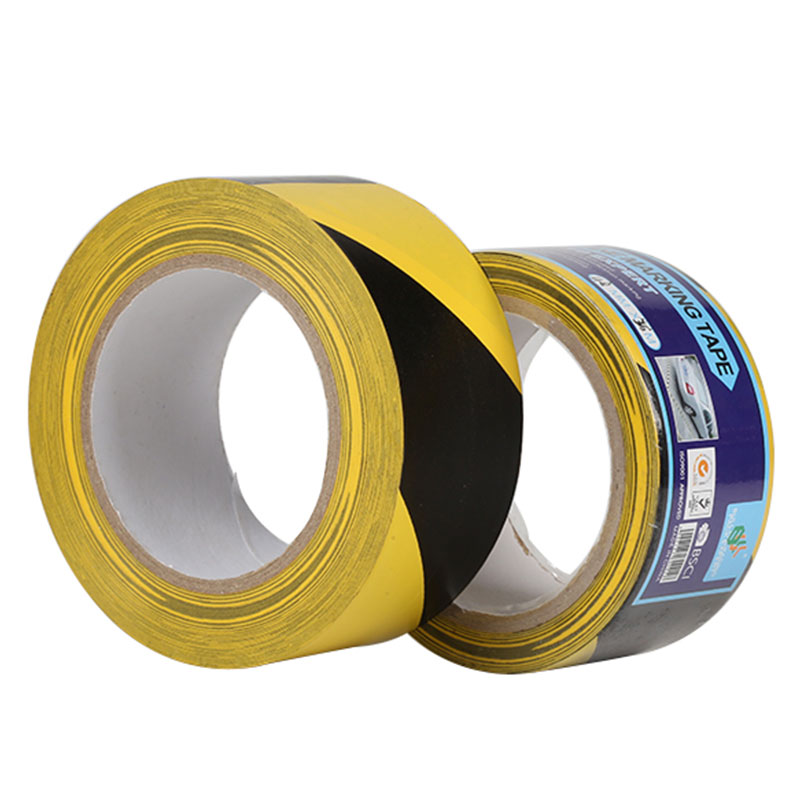

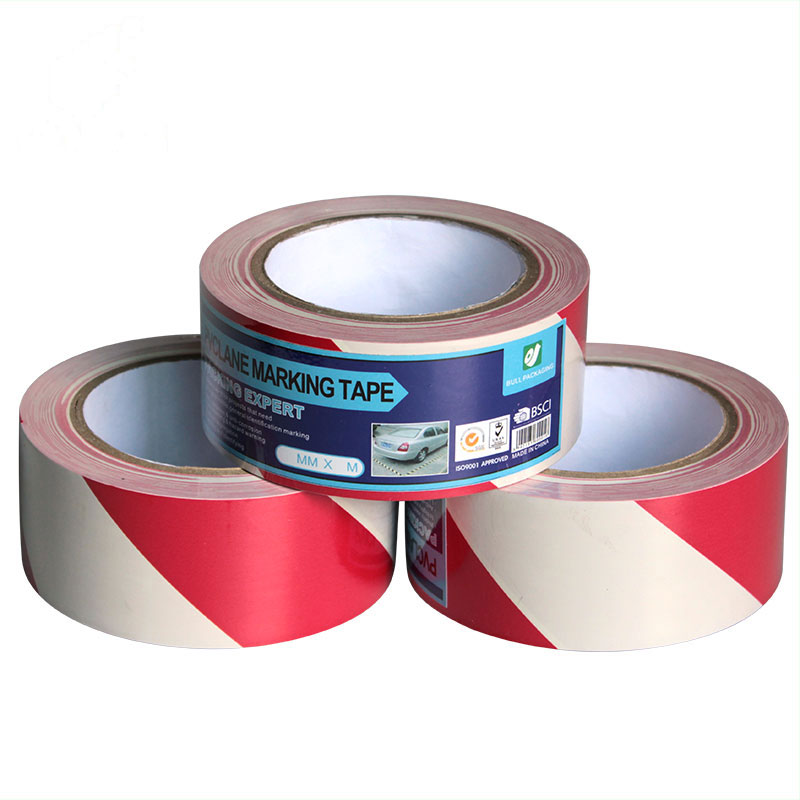

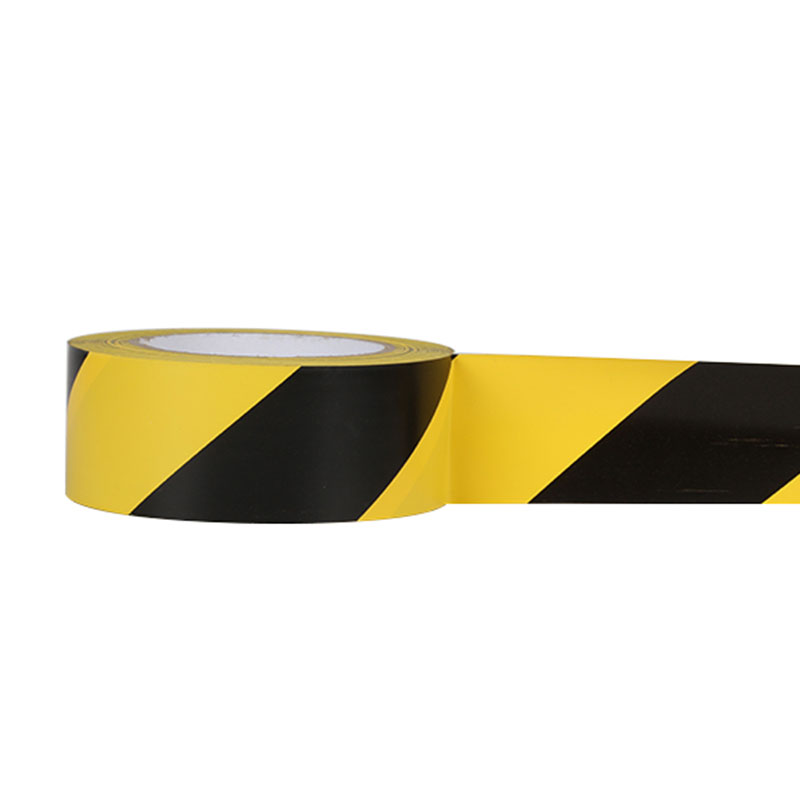

Floor Marking Tape
Floor Marking Tape is a heavy-duty, single-sided tape made from flexible PVC or vinyl film coated with a strong rubber-based or acrylic adhesive. It is purpose-built to replace painted lines on industrial floors, warehouse aisles, production cells, and commercial spaces — delivering instant, high-visibility zoning without curing time, overspray, or shutdowns.
As a core tool of 5S / Lean manufacturing and OSHA 1910.22 aisle-compliance programs, floor marking tape defines walkways, hazard boundaries, equipment footprints, and storage zones while withstanding foot traffic, pallet jacks, and forklift scuffing
Detailed Introduction
Features:
- Instant Zoning, No Downtime: Peel-and-stick application; floors can be walked on immediately after installation — no paint drying, no cordoning off areas.
- High-Visibility Color System: Solid yellow, red, blue, green, white, orange plus hazard stripes (yellow/black, red/white, black/white) for instant visual communication.
- Abrasion & Forklift Resistant: Dense PVC backing resists scuffing, edge lift, and tearing under continuous pallet-jack and light forklift traffic.
- Strong, Clean-Removal Adhesion: Aggressive tack to concrete, epoxy, tile, and sealed wood; low-residue removal when layouts change.
- Oil, Water & Chemical Resistant: Withstands mild acids, alkalis, cleaning agents, and grease common in workshops and food-grade facilities.
- Low-Stretch Backing: Does not shrink back or curl after application, keeping lines straight over time.
- 5S / Lean Ready: Supports color-coded workflow, kanban footprints, and safety-path design without repainting.
- Optional Glow / Non-Slip: Photoluminescent grades for emergency egress; textured surface options for slip-prone zones.
Applications:
- Warehouse & Logistics: Aisle lines, pallet-zone outlines, dock door marking, AGV robot paths.
- Manufacturing: Workstation footprints, WIP buffers, tool shadow boards, machine guard lines.
- 5S / Lean Programs: Kanban squares, floor arrows, andon paths, changeover zones.
- Safety & Compliance: Fire-extinguisher clearances, electrical-panel fronts, exit routes (OSHA 1910.22).
- Public & Commercial: Hospital corridor direction, school gym courts, supermarket queuing lines, mall guidance.
- Temporary Events: Trade-show booth boundaries, crowd-control lanes, social-distancing markers.
Specifications:
|
Characteristics |
Standard Value |
|
Adhesive/Easy tear |
PVC film adhesive |
|
Carrier/Backing |
Rubber |
|
Thickness |
100mic-500mic(total) |
|
Width |
8mm-1250mm |
|
Length |
3m-50m |
|
Core |
Paper core |
|
Print |
Yellow,Blue,Black,White,Green,white/red,white/green, yellow/black.
|
|
Packing |
1)1-6 rolls shrinking 2)36-72 rolls per carton or as customers’ requirment |
|
Certifications |
ISO 9001:2000 , RoHS, REACH,SGS Test |
|
Customizing Service |
1)Semi-finished products (Jumbo roll) and finished products(small roll)can be provided 2)OEM service is available |
*Availability to produce on request widths and characteristics different from standard.
