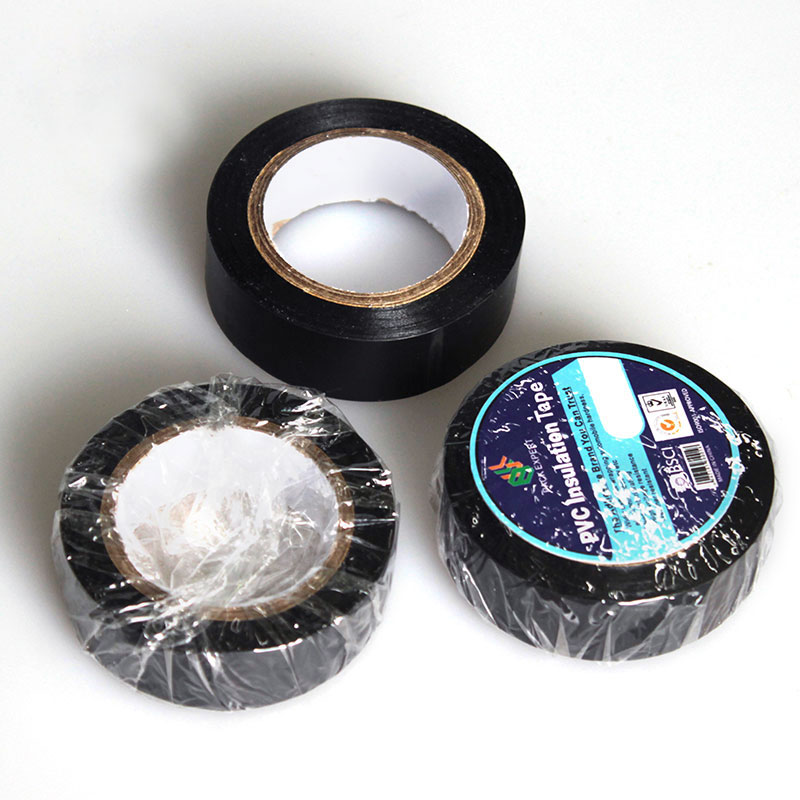

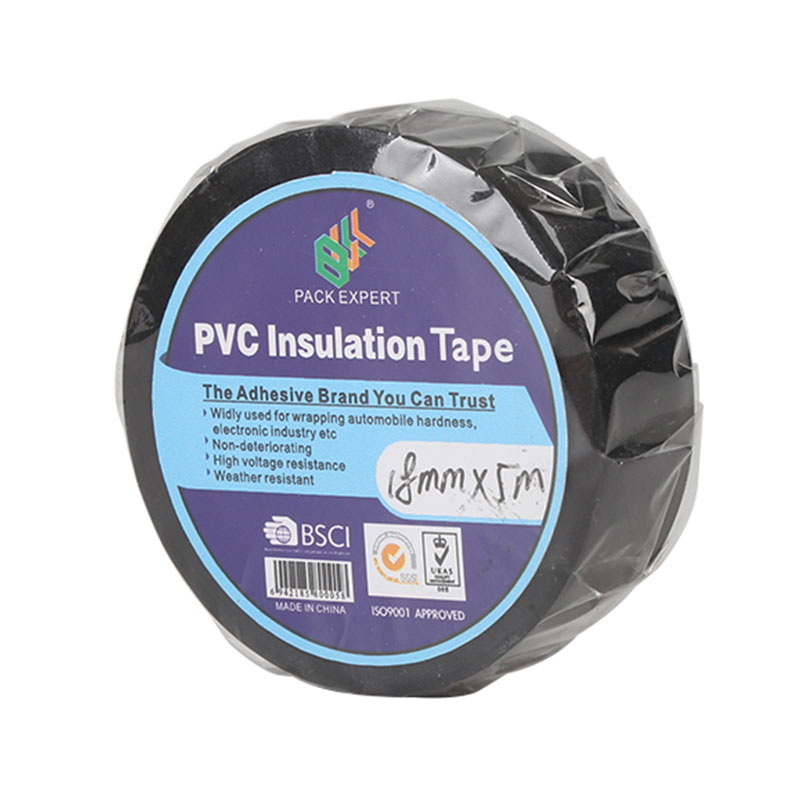

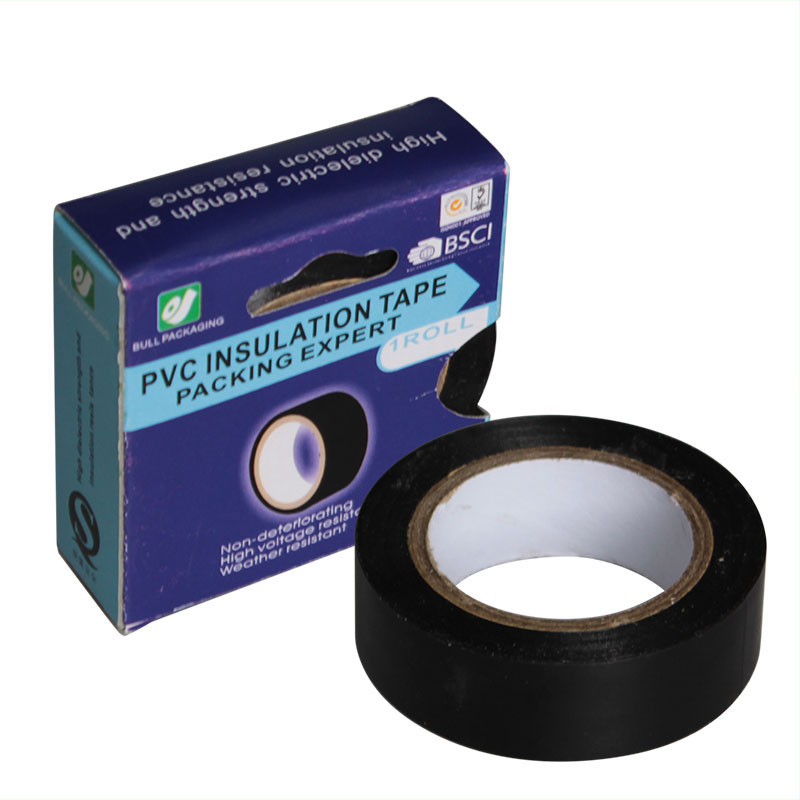

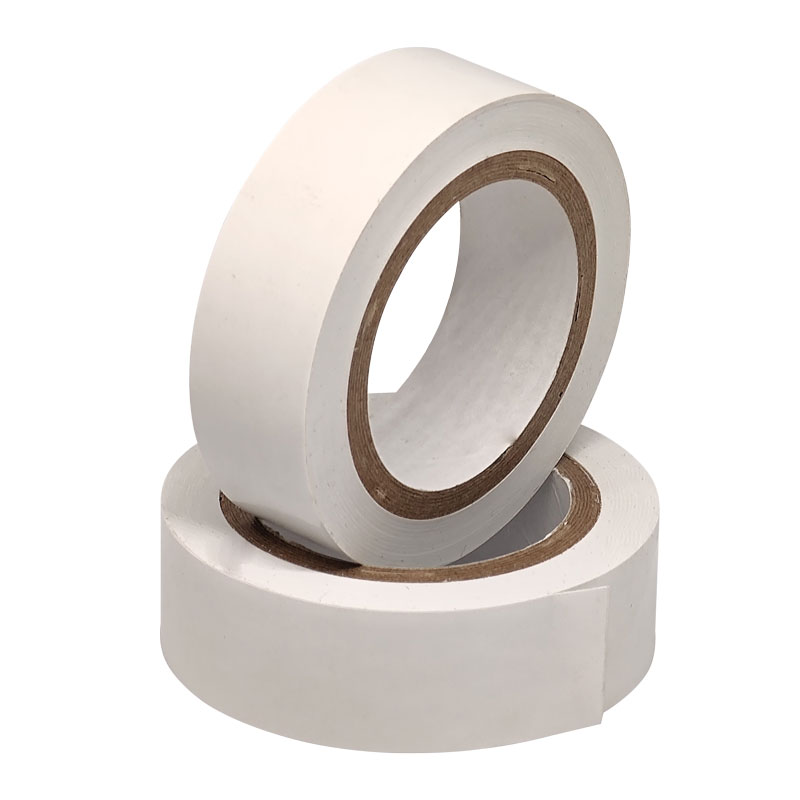

PVC Insulation Electrical Tape

PVC Insulation Tape, also known as electrical tape or vinyl tape, is a pressure-sensitive tape made from polyvinyl chloride (PVC) film coated with a rubber-based or acrylic adhesive. It is specifically designed for electrical insulation, wire harnessing, and cable protection in low and medium voltage applications. Its combination of dielectric strength, flame retardancy, and conformability makes it the industry standard for electricians, maintenance professionals, and DIY enthusiasts worldwide.

Send An Inquiry

Detailed Introduction

Features:

High Dielectric Strength: Provides reliable electrical insulation for voltages up to 600V (standard grade) and beyond (specialty grades).
Flame Retardant: Self-extinguishing formulation meets UL 510, IEC 60454, and other international safety standards.
Excellent Conformability: Stretches and wraps tightly around irregular shapes, connectors, and cable bundles without lifting.
Residue-Free Removal: Removes cleanly from cables and surfaces even after extended use — no sticky residue left behind.
Moisture & Abrasion Resistant: Protects wires and connections from moisture, dust, chemicals, and mechanical wear.
Wide Temperature Range: Performs reliably in temperatures from -10°C to +80°C (standard); up to +105°C (high-temp grade).
UV Resistant (Select Grades): Suitable for outdoor and direct sunlight exposure applications.
Color Coding: Available in multiple colors for phase identification and circuit organization.

Applications:

Electrical Wiring: Insulating spliced wires, cable joints, and terminal connections.
Wire Harnessing: Bundling and protecting wire looms in automotive, industrial, and appliance applications.
Cable Repair: Temporary or permanent repair of damaged cable sheathing and insulation.
Phase Identification: Color-coded wrapping for identifying live, neutral, and earth wires (e.g., black, red, blue, yellow/green).
Transformer & Motor: Insulating coil ends, lead wires, and internal connections.
Electronic Assembly: Component lead insulation, PCB protection, wire marking.
Maintenance & Repair: General purpose insulating, bundling, and labeling in facilities and workshops.

Specifications:

Characteristics	Standard Value
Adhesive/Easy tear	Rubber adhesive
Carrier/Backing	PVC film
Thickness	110mic-190mic(total)
Width	12mm-1250mm
Length	5M to length customized
Core	Paper core
Print	Yellow,Black,White,Green..
Packing	1)1-12 rolls shrinking 2)36-192 rolls per carton or as customers’ requirment
Certifications	CE,UL,ROHS,SGS Test
Customizing Service	1)Semi-finished products (Jumbo roll) and finished products(small roll)can be provided 2)OEM service is available

*Availability to produce on request widths and characteristics different from standard.
